MPO / MTP Data Center Cabling Manufacturer — Cassettes, Patch Panels, Trunk Cables and Patch Cords
Fibconet үйлдвэрлэдэг 10 series of MPO / MTP fiber optic products for 40G, 100Г, 400G and 800G data center cabling. The product line covers cassette modules, 1U rack patch panels, MPO trunk and patch cords, MPO-to-LC breakouts, loopbacks and MPO/MTP cleaners — enough to build a full high-density link from the MDA to the switch port without adding a second supplier.

Production runs on dedicated MPO polishing, ribbon splicing and 3D interferometer inspection lines. Monthly output reaches 150,000 ширхэг across the MPO family. Fiber count scales up to 72 fibers per MPO end for 400G/800G backbone applications. Single-fiber insertion loss can be controlled to 0.15 дБ on assemblies built with Japanese-imported ferrules, and to typical 0.20–0.35 dB on standard builds with domestic Sanhuan ferrules.

Every finished cable is 100% inspected for insertion loss, өгөөжийн алдагдал, end-face geometry, туйлшрал, шилэн дараалал, урт ба гадаад төрх. FLUKE / EXFO electronic test reports are available after order confirmation. Products currently ship into hyperscale, telecom and enterprise data-center projects in the US, Canada, Germany, UK and Netherlands.
10 MPO / MTP Products We Manufacture
Бүлэг 1 — Cassette Modules
Pre-terminated MPO-to-LC or MPO-to-MPO conversion cassettes for 1U rack panels. The building block of any high-density data-center row.

Загвар
Шилэн тоо
Интерфэйс
Ердийн хэрэглээ

Fiber Optic MPO 1U 12–144 Cores Cassette Module
12 руу 144
MPO trunk in / LC duplex out
Standard MDA-to-EDA conversion

12/24 Үндсэн өндөр нягтралтай шийдэл MPO кассет модуль
12 эсвэл 24
MPO in / LC out
Compact rack builds with 12F or 24F MPO base

8/12/24 MPO MTP бааз руу 24 LC Ultra Light Tighity 1u модуль
Шалтгаална, хамаарна 24 LC per 1U
MPO/MTP in / 24 LC out
Highest 1U density; AI cluster and hyperscale rows

Бүлэг 2 — Rack Patch Panels
Empty or pre-assembled 1U 19-inch chassis to hold cassette modules and to organise trunk cables at the top of the rack.

Загвар
Rack Size
Loading
Ердийн хэрэглээ

Data Center 19-inch Standard Rack MPO Patch Panel
1У
Empty chassis for cassettes
Standard MDA rack, modular build

Pre-assembled 1U 19-inch Rack LC MTP®/MPO Patch Panel
1У
Pre-terminated LC front, MPO back
Plug-and-play rack, no field assembly

Бүлэг 3 — Patch Cords and Trunk Cables

The physical link between MPO cassettes, Нөхөх самбарууд, transceivers and MPO backbone runs.

Загвар
Бүтэц
Fiber Options
Ердийн хэрэглээ

Factory Pre-termination MPO-MPO 3.0mm LSZH Patch Cord / Trunk Cable
MPO to MPO
OS2 / OM3 / OM4 / OM5
Backbone trunk, MDA to EDA

Fiber Optic MPO MTP холбогч нөхөөсийн утас
MPO to MPO
OS2 / OM3 / OM4 / OM5
Rack-to-rack short jumper

FTTA MPO/MTP Fiber Optic Patch Cord Cable
MPO to MPO, outdoor jacket
OS2 / OM3 / OM4
Base station FTTA and outdoor short link

Бүлэг 4 — Loopback
Used to test transceiver ports, cassette continuity and rack integrity without pulling a full trunk link.

Загвар
Интерфэйс
Шилэн
Ердийн хэрэглээ

OM3 MM MTP/APC Female MPO Loopback
MTP/APC female
OM3 олон горим
Multimode transceiver and cassette test

Бүлэг 5 — Cleaning Tools
End-face contamination is the single largest cause of MPO insertion-loss failures. One qualified cleaner per rack is standard project practice.

Загвар
Тохиромжтой
Ердийн хэрэглээ

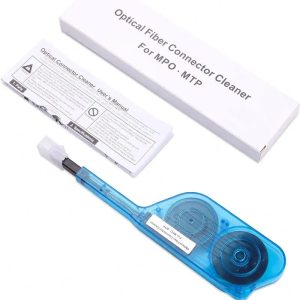

Бүх төрлийн тохируулагч MPO/MTP цэвэрлэгч
All MPO/MTP end-faces
Field cleaning before mating; commissioning kit

What Is MPO / MTP and How to Choose the Right Product
MPO vs MTP — Same Standard, Different Brand
MPO (Олон утастай түлхэх) is the generic multi-fiber connector standard defined in IEC 61754-7. MTP® is US Conec’s brand-name implementation of the same MPO standard, with tighter mechanical tolerances on the guide-pin holder, spring load and internal ribbon protection. Both mate with each other and both follow the same fiber count and polarity rules. Fibconet manufactures to the MPO standard and supplies MTP-compatible builds on request; the underlying optical spec is identical.
Polarity — Type A, B төрөл, C төрөл

Туйлшрал
Fiber Sequence
Ердийн хэрэглээ

А төрөл (Шулуун)
1↔1, 2↔2 … 12↔12 straight-through
Point-to-point trunks with A-to-B duplex crossover in the patch cord

B төрөл (Reverse)
1↔12, 2↔11 … 12↔1 fully reversed
Direct connection to SFP+ / QSFP transceivers; most common for 40G/100G breakout

C төрөл (Pair-swap)
Adjacent pairs swapped: (1↔2, 2↔1), (3↔4, 4↔3) …
Legacy pair-flip cabling

Polarity errors are the single most common cause of link-up failure on MPO systems. Confirm polarity at RFQ stage; we ship Type A / Б / C per your bill of materials.
Gender — Male (with pins) vs Female (зүү байхгүй)

Эрэгтэй: two guide pins protrude from the end-face. Used at fixed / patch-panel ends.
Female: зүү байхгүй, two guide-pin holes only. Used at the equipment / movable-jumper end.

Wrong gender at RFQ = the entire batch has to be re-terminated. Always specify Male-Female, Female-Female or Male-Male at the quotation stage.
Fiber Type — Match to Data Rate and Distance

Шилэн
Долгионы урт
10G reach
40Г / 100G reach
Ердийн хэрэглээ

OM3 олон горим
850 nm
550 м
100 м / 100 м (SR4)
Short rack-to-rack, cost-sensitive builds

OM4 multimode
850 nm
550 м
150 м / 150 м (SR4)
Standard data-center backbone

OM5 олон горим
850 & 953 nm SWDM
550 м
≥ 150 м; supports 400G SR4.2
AI cluster and next-gen supercompute backbone

OS2 singlemode
1310 / 1550 nm
10 км +
10 км + (LR4 / DR4)
Inter-building, кампус, DCI long-haul

Insertion Loss Grade — Standard vs Low-Loss

Зэрэг
Max IL per mated pair
Буцаах алдагдал
Ердийн хэрэглээ

Стандарт (SM APC)
≤ 0.70 дБ
≥ 55 дБ
Enterprise LAN, standard data-center runs

Low-Loss / Элит (SM APC)
≤ 0.35 дБ (ердийн 0.25 дБ)
≥ 55 дБ
Cabinet-to-cabinet 100G high-density backbone

Ultra Low-Loss (Japanese ferrule)
0.15 dB per single fiber
≥ 55 дБ
400Г / 800G AI backbone; long link budgets

Стандарт (MM PC)
≤ 0.50 дБ
≥ 20 дБ
OM3/OM4 short data-center runs

Low-Loss (MM PC)
≤ 0.35 дБ (ердийн 0.20 дБ)
≥ 20 дБ
OM4/OM5 high-density backbone

Техникийн үзүүлэлтүүд

Анхаарна уу: the values below are family-typical across the 10 цуврал, нэг SKU мэдээллийн хуудас биш. RFQ шатанд загварт зориулсан туршилтын тайланг биднээс асуугаарай; Бид үүнийг загварын хэсгийн дугаараар илгээдэг.

Параметр
Ердийн үнэ цэнэ
Сэтгэгдэл

Fiber count per MPO end
4 / 8 / 12 / 16 / 24 / 48 / 72
Standard 12F and 24F; 72F for 400G/800G AI backbone

Шилэн төрлийн
OS2 (G.652.D, G.657.A1/A2), OM3, OM4, OM5
G.657.A2 for tight-radius rack routing

Туйлшрал
А төрөл / B төрөл / C төрөл
Type B is default for 40G/100G breakout

Хүйс
Эрэгтэй (with pins) / Female (зүү байхгүй)
Both ends selectable per port

End-face polish
APC (ганц горим) / PC (олон горим)
APC green, PC beige/aqua

Оруулах алдагдал (нэг ширхэг утас)
0.15 – 0.35 dB per grade
0.15 dB achievable with Japanese-imported ferrules

Буцах алдагдал
≥ 55 дБ (SM APC), ≥ 45 дБ (SM PC), ≥ 20 дБ (MM PC)

Гэр бүлийн бат бөх чанар
≥ 500 мөчлөг, IL drift ≤ 0.2 дБ
Guide-pin positioning with elastic pre-load

Хамгийн бага гулзайлтын радиус
MPO end ≥ 30 мм; LC breakout end ≥ 20 мм
Статик 15 мм, динамик 30 mm on G.657.A2 fiber

Үйлдлийн температур
−20°C to +60°C
Optical performance stable across the range

Ingress / чийгшил
IP50; 45°C / 95% RH; 24-hour salt spray
Not for long-term unprotected outdoor use unless FTTA-jacketed

Length range
0.2 руу 300 m custom; · Түгээлтийн хүрээ · FTTH · Шилэн кабелийн сүлжээний тоног төхөөрөмж · Кабелийн телевизийн сүлжээ 0.5 руу 30 м
Загвар бүрээр

Trunk cable OD
3.0 mm typical (8/12/16/24Ф); ~5.0 mm (48Ф)
Higher fiber count = larger OD

Хүрэм
LSZH standard; OFNR / OFNP on request
Suitable for data hall, riser and plenum

Туршилтын долгионы урт
1310 / 1550 nm (SM), 850 / 1300 nm (ММ)

Баталгаат хугацаа
1 жил; design life up to 10 жил
Field replacement covered within warranty period

Үйлдвэрлэлийн чадвар, чанарын хяналт
Production Line and Monthly Capacity
Фибконетийн оптик идэвхгүй бүрэлдэхүүн хэсгүүдийн үндсэн үйл ажиллагаа нь эрт дээр үеэс эхэлсэн 1994. MPO / MTP line runs on dedicated equipment: automated fiber-separating jigs, sub-micron 3D polishing machines and integrated injection-molding stations for one-piece reinforcement at the breakout root instead of simple heat-shrink. Monthly output reaches 150,000 ширхэг. Standard orders of several thousand pieces ship in 7–12 days; bulk orders above 20,000 pieces ship in 15–20 days.
Дээд талын материалын хяналт
An MPO patch cord is only as good as its ferrule, its fiber and its ribbon splice. Бид зөвхөн угсрах үе шатыг бус дээд талын стекийг хянадаг:

Нийгмийн: domestic Sanhuan ferrules on standard builds; Japanese-imported ferrules (Sumitomo class) on ultra-low-loss builds. Both selectable per order.
Шилэн: YOFC / Fiberhome / HTGD single-mode and OM3/OM4/OM5 multimode, with G.657.A2 bend-insensitive fiber for tight-radius rack routing.
Арамидын утас: Taihe standard; DuPont Kevlar available on request.
Jacket compound: LSZH low-smoke zero-halogen resin; OFNR and OFNP grades available.
Ribbon splicing: high-precision ribbon fiber fusion splicers, core-by-core alignment.

100% Чанарын хяналт

Insertion loss and return loss: tested on every fiber of every finished cable with a dedicated IL/RL tester.
End-face geometry: 3D interferometer inspection; every finished ferrule end-face.
Туйлшрал ба утаснуудын дараалал: core-by-core verification against the bill of materials on every unit.
Length and appearance: mechanical measurement and visual inspection.
Batch environmental testing: high-low temperature cycling per batch.
Test reports: FLUKE / EXFO electronic reports available on request after order confirmation.

Баталгаажуулалт ба нийцэл
Fibconet нь нэгдсэн системээр ажилладаг ISO 9001 / ISO 14001 / ISO 45001 чанарыг хамарсан удирдлагын тогтолцоо, байгаль орчин, хөдөлмөрийн эрүүл ахуй & аюулгүй байдал. Raw-material RoHS reports ship by default. Product-level compliance — CE, REACH, нь, ETL — is issued per model and per target market. Баталгаажуулалтыг ашиглах нь бүтээгдэхүүн болон төслийн шаардлагаас хамаарч өөр өөр байдаг. Зорилтот зах зээл болон загварын жагсаалтаа бидэнд илгээнэ үү; we return the applicable certificate set with the quotation.
Сав баглаа боодол, OEM болон захиалгат сонголтууд
Standard Packaging

Each patch cord / trunk cable sealed in an individual PE bag.
Cassettes and patch panels foam-cushioned in an inner box.
Master export carton labeled with model, тоо хэмжээ, polarity and gender code.

OEM болон захиалгат сонголтууд

Урт: any length from 0.2 м хүртэл 300 м, cut to your bill of materials.
Breakout leg length: individual breakout legs cut to differentiated lengths (length difference ≤ 30 см) for staggered rack ports.
Breakout configuration: 24F to 2×12 / 3×8 / 4×6; 16F to 2×8; 48F to 6×8; Шалтгаална, хамаарна 6 MPO connectors per single end on MPO-to-MPO breakouts.
Туйлшрал: А төрөл / Б / C per port; internal crossover on Type B for direct SFP mating.
Ferrule grade: domestic Sanhuan or Japanese-imported per fiber-count / IL grade selection.
Jacket color: дотуур түүнээс a (OM3), erika violet (OM4), шохойн ногоон (OM5), шар (OS2), custom RAL.
Breakout root protection: аль нь ч биш (short runs), nylon boot (standard rack), braided sleeve (high-wear).
OEM label and printing: on connector body, PE bag and master carton.
Захиалгат савлагаа: PE bag and carton design per your artwork, MOQ 30,000 pcs for full custom packaging run.
Дээж: free small-quantity samples for quality verification; only shipping cost payable, deductible from the first bulk order.

Байнга асуудаг асуултууд
Q1. What is the difference between MPO and MTP®?
MPO is the generic IEC 61754-7 multi-fiber connector standard. MTP is US Conec’s brand-name implementation of the same standard with tighter mechanical tolerances on the guide-pin holder and internal ribbon protection. Both mate with each other. Fibconet manufactures to the MPO standard; MTP-compatible builds are available on request.
Q2. What is the highest data rate your MPO products support?
Up to 800G. The product line supports 40G, 100Г, 400G and 800G stably. For 400G / 800G AI-backbone applications we recommend 24-fiber or 72-fiber MPO with the ultra-low-loss ferrule grade to preserve link budget.
Q3. What is the maximum fiber count per MPO end?
72 fibers per single MPO end. Standard 12F and 24F cover most 40G / 100Г / 400G rack builds; 72F is used for 400G / 800G high-density AI backbone and supercompute cabling.
4-р улирал. Can I mix ends — MPO on one side and LC / SC / FC on the other?
Тиймээ. MPO-to-LC breakout is the most common configuration; MPO-to-SC and MPO-to-FC are also supported. Confirm the breakout connector type and quantity at RFQ.
Q5. Are both ends symmetric on MPO-to-MPO breakout cables?
Тиймээ. For MPO-to-MPO breakouts (for example 24F into 2×12 or 3×8), the fiber count and configuration must be symmetric on both ends because every fiber core needs a one-to-one map. Шалтгаална, хамаарна 6 MPO connectors per single end are supported.
Q6. What polarity should I order for a 40G / 100G SR4 link?
Type B is the default for direct SFP+ / QSFP transceiver mating on 40G / 100GSR4. The internal crossover is done inside the cable so no external cross-connect is needed. Confirm your transceiver polarity requirement at RFQ; we ship Type A / Б / C per your bill of materials.
Q7. What is the difference between standard and low-loss grade?
Standard grade holds insertion loss below 0.70 dB per mated pair; low-loss grade holds it below 0.35 dB with typical 0.25 дБ. Ultra low-loss builds with Japanese ferrules reach 0.15 dB per single fiber. Low-loss and ultra low-loss are recommended for 100G high-density backbone and 400G / 800G links where every mated connector consumes link budget.
Q8. Do you 100%-test every fiber, and do you supply FLUKE / EXFO reports?
Тиймээ. Every cable and every fiber core is tested for insertion loss, өгөөжийн алдагдал, end-face geometry, туйлшрал, шилэн дараалал, length and appearance before shipment. FLUKE / EXFO electronic test reports are available on request after order confirmation.
Q9. Can I get samples before placing a bulk order?
Тиймээ. Free small-quantity samples are supplied for quality verification; you only cover the shipping cost, and that shipping cost is deducted from your first formal bulk order as a cooperation incentive.
Q10. What is your monthly capacity and typical lead time?
Monthly output across the MPO family is 150,000 ширхэг. Standard orders of several thousand pieces ship in 7–12 days from stock. Bulk orders above 20,000 pieces ship in 15–20 days. Custom packaging with full artwork runs from an MOQ of 30,000 ширхэг.
Q11. Can these MPO products be used outdoors?
The standard MPO line is optimised for data hall, MDA and rack environments (IP50, −20°C to +60°C, LSZH). For outdoor and FTTA applications, use the FTTA MPO/MTP Fiber Optic Patch Cord with an outdoor jacket, or ask for a custom outdoor build. Do not deploy the standard indoor jacket in unprotected outdoor conditions.
Q12. What is the warranty?
Standard warranty is 1 жил; design service life is up to 10 жил. Because 100% inspection is applied on every unit, field failures are rare; when they occur within the warranty period, we ship a replacement immediately.
