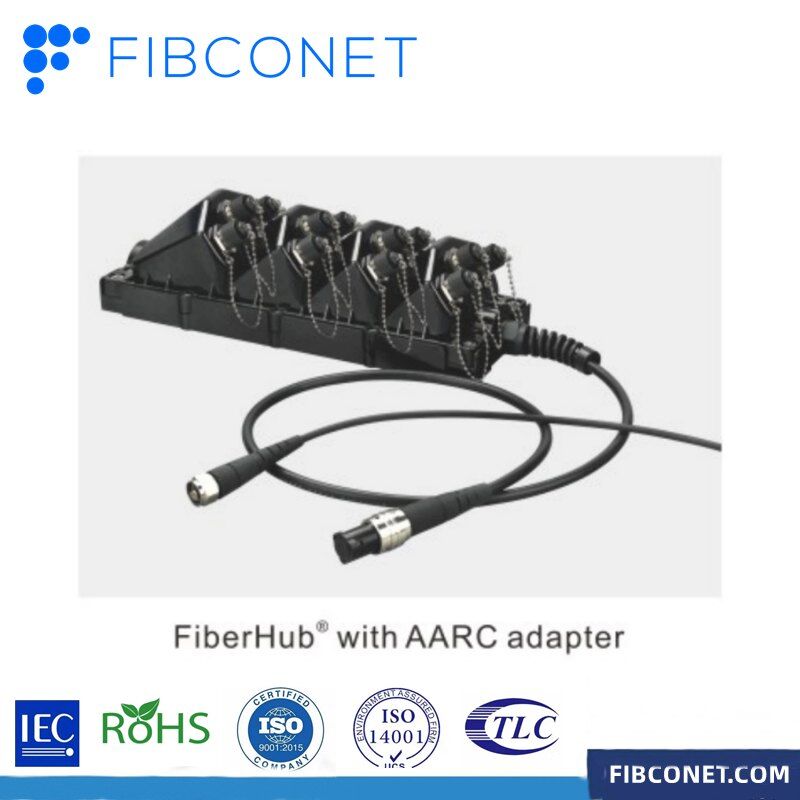

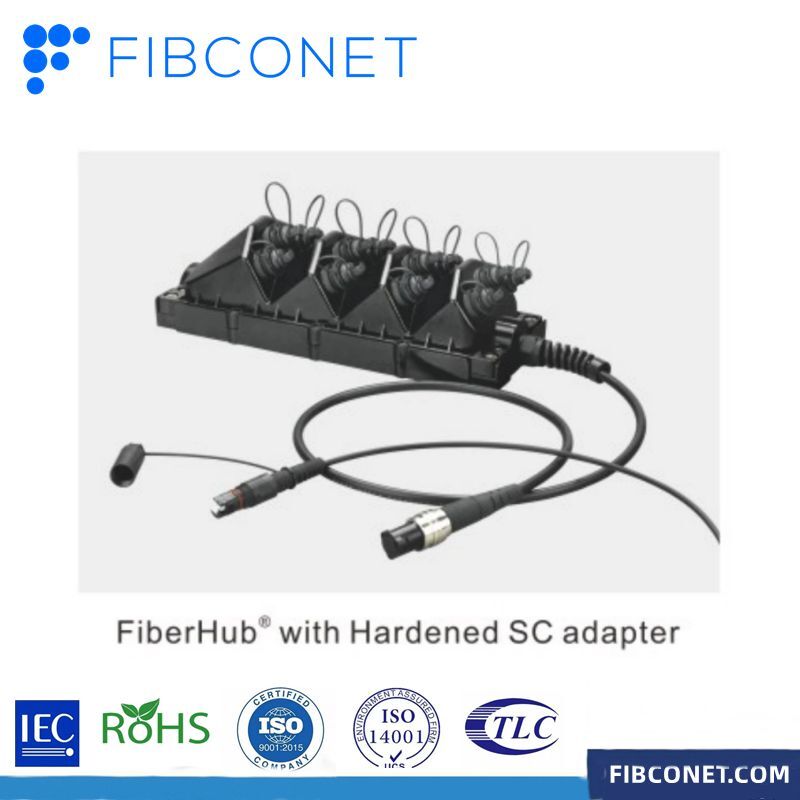

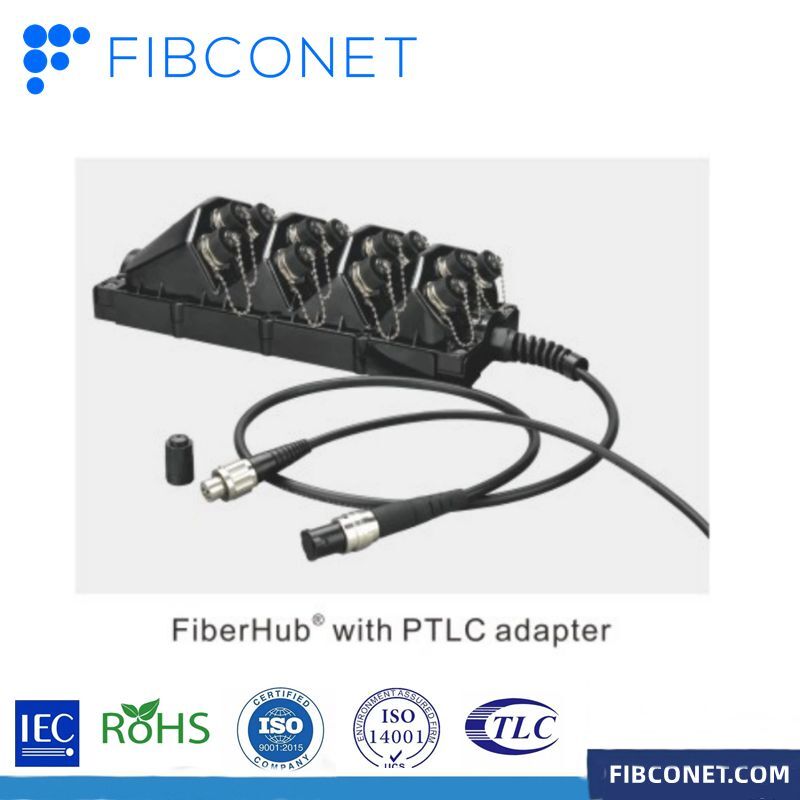

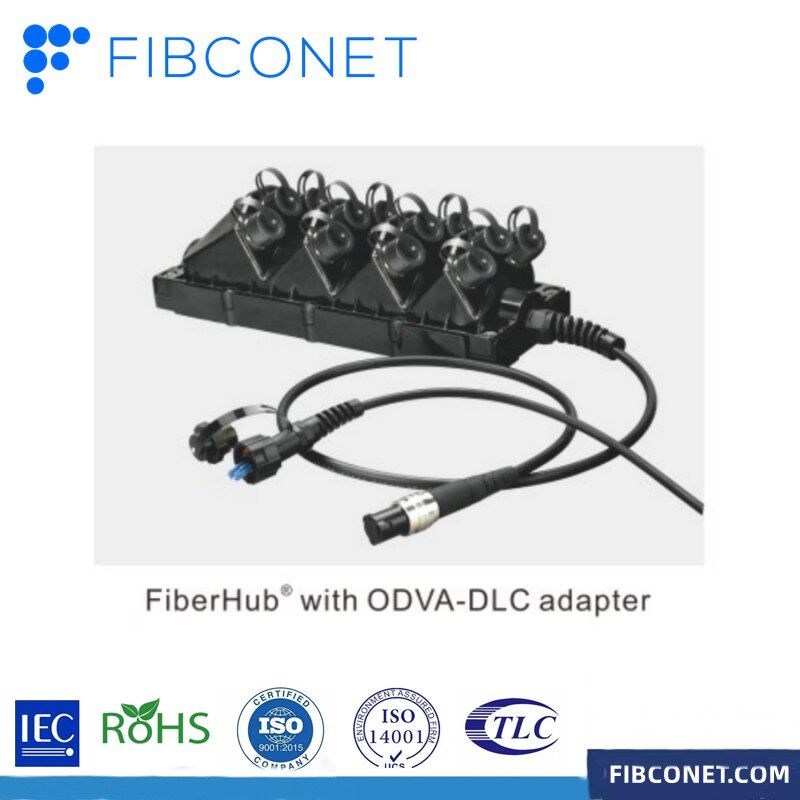

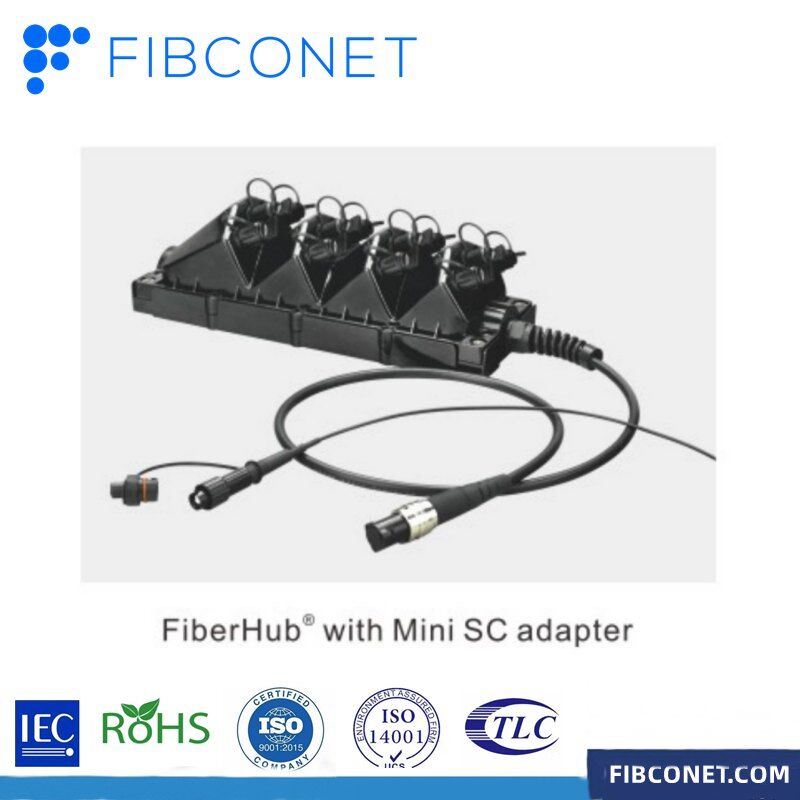

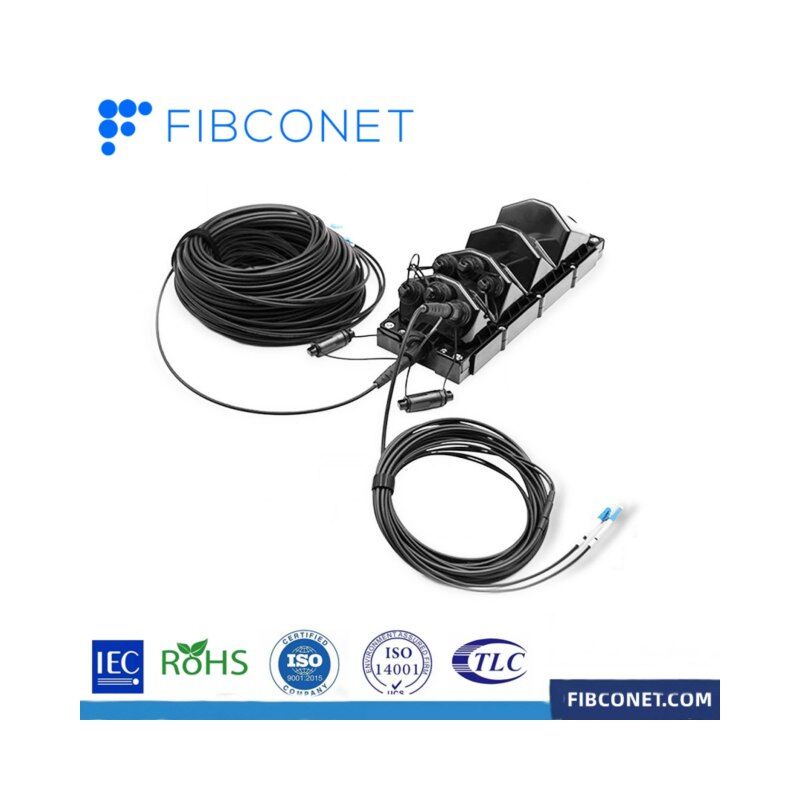

Fiber Optic 5g Splice Closure with Waterproof Adapter

Description

FTTH Box Our terminal box is available for the distribution and terminal connection for various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.

Product Features

  • Widely used in FTTX access networks.
  • Telecommunication Networks
  • CATV networks
  • Local Area Networks

Applications

  • Splice and patch cord use separation stucture easy to Capacity expansion and maintence;
  • High quality plastic, Beautiful appearance ;
  • Internal turnover structure, easy to maintenance;
  • Can install tube type splitter;
  • Could exit 16 pcs of drop cable;
  • Protection levels : IP55

Compliance

  • Telcordia GR-1209-CORE-2001
  • Telcordia GR-1221-CORE-1999
  • YD-T2000.1-2009
  • RoHS

Additional information

Play Video about fibconet

Get The Files Related to This Product

Get The Files Related to This Product

Download

Product Details

SPECIFICATION & Accessory combination

Dimensions LxWxH 365x137x90mm(Without cover)     374x143x120mm(With cover)
Ingress protection IP67
Temperature range -40 to + 80ºC
Cable strength member Armoured or Non-armoured
Cable type Hybrid or Non-hybrid
Round cable OD 5.0mm to 14mm
Flat cable dimension 4.6×8.9mm
Cable jacket material LSZH, PE or TPU
Bending Radius 20D
Cable crush resistance 200N/cm long term
Tensile strength 1200N long term
UV resistance ISO 4892-3
Fire protection rating UL94-V0
Number of PLC 1 to 2pcs
Number of fusion protection sleeve 1 to 24pcs

Ord Infomation

Model NO.:5G fiber optic splice closure
Flat Cable Dimension:4.6X8.9mm
Color:Black
Temperature Range:-40 to + 80ºC
Service:ODM/OEM
Inner Package:Carton/Customized
Transport Package:Carton
Specification:1*4 1*8
Trademark:FIBCONET
Origin:Ningbo, China
HS Code:8536700000
