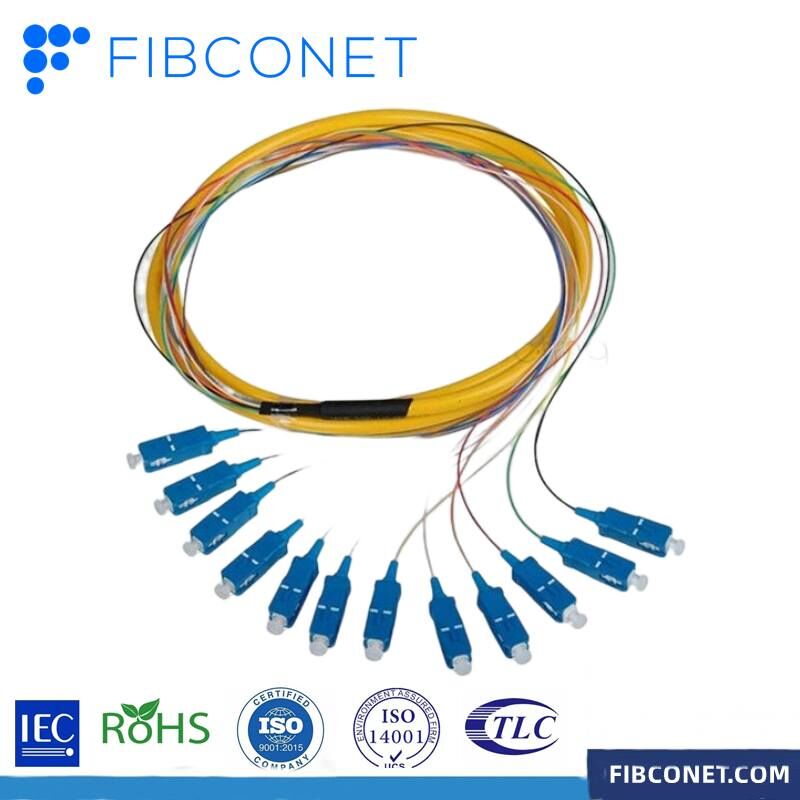

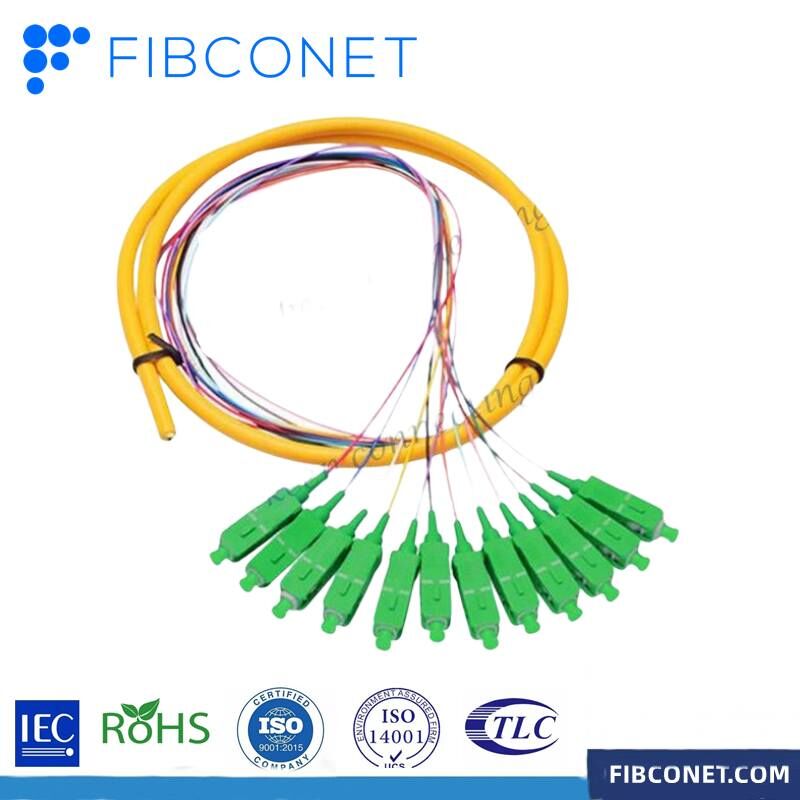

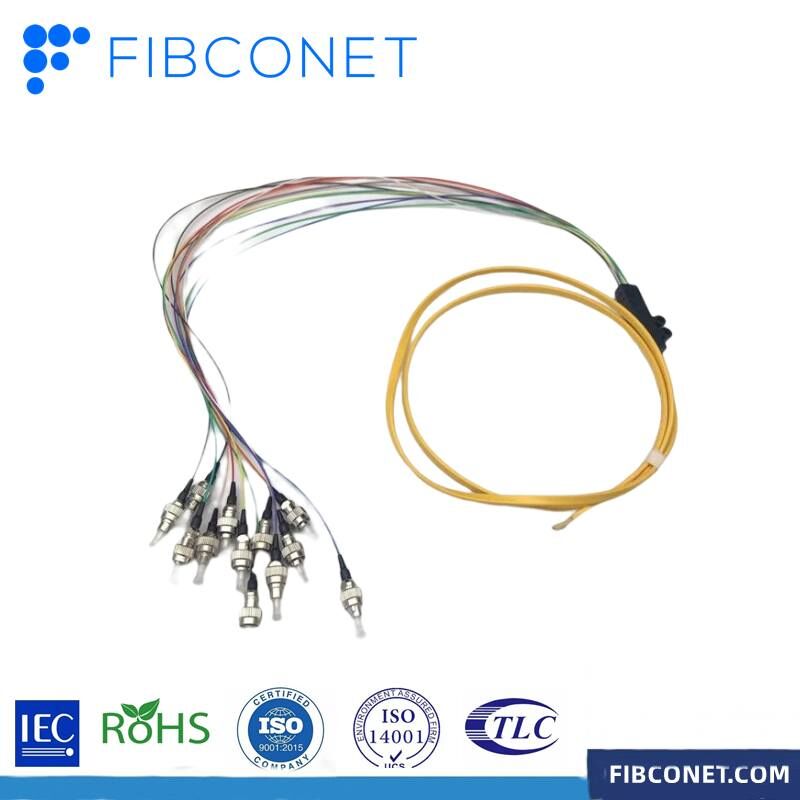

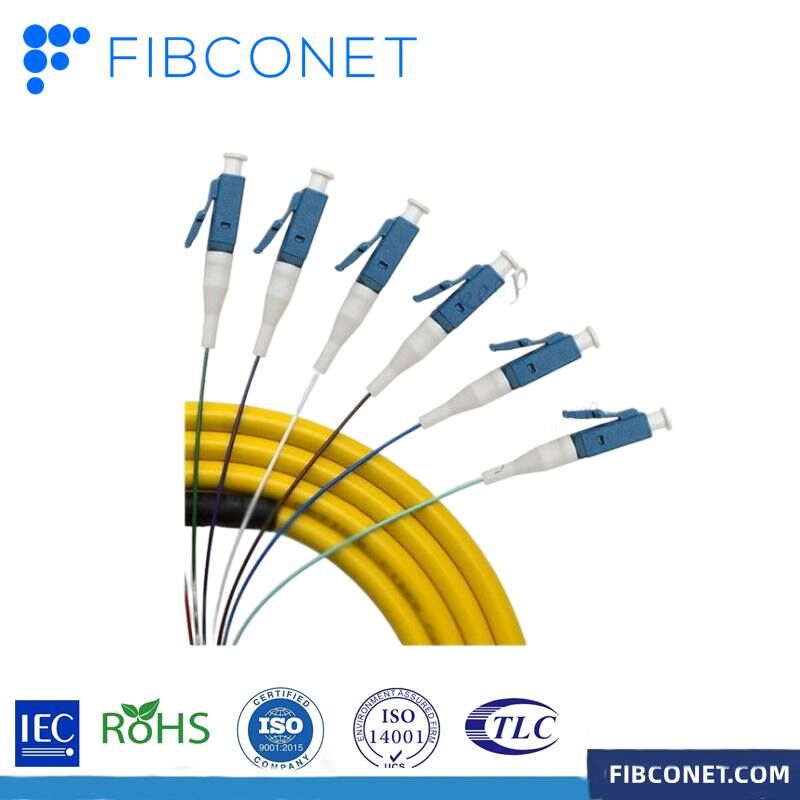

FTTH Sc Simplex Indoor Fiber Optic Pigtail

Description

A cable that has an appropriate connector on one end and loose wires on the other. It is designed to patch into an existing line or to terminate the ends of a long run.

Application

  • Data transmission
  • Optical fiber CATV
  • LAN indoor/outdoor
  • WBN
  • Telecommunication
  • Testing equipment

Features

  • PC UPC APC polishing optional
  • Low insertion loss, high return loss
  • High credibility and stablity
  • 400* microscope inspecting
  • Wide Operating Wavelength: 1260-1650nm
  • Wide operating temperature: -50°C – 85°C
  • Excellent repeatability and interchangeability
  • Singlemode or multimode fiber optional

Additional information

Play Video about fibconet

Get The Files Related to This Product

Get The Files Related to This Product

Download

Product Details

Item Single mode Multi mode
PC UPC APC PC
Insertion Loss ≤0.3dB ≤0.3dB ≤0.3dB ≤0.3dB
Reture Loss ≥50dB ≥55dB ≥60dB ≥35dB
Repeatability ≤0.1dB ≤0.1dB ≤0.1dB ≤0.1dB
Durability(Times) ≥600 ≥600 ≥600 ≥600
Tensile strength(N) ≥55 ≥55 ≥55 ≥55
Operating Wavelength 1310nm,1550nm
Temperature Stability Additional Loss≤0.2dB, Return Loss Variability<5dB
Working Temperature -50℃~+75℃



Ord Infomation

Module x xxx x x xx x x x x
YD- Fiber Dia Fiber Length Fiber cores Fiber model Jacket Input  Connector Output  Connector Fiber Stub Strength Member
IPC=Indoor Patch Cord

APC/AP=Armored Patch Cord/Pigtail

DPC=FTTH Drop Patch Cord

CPC=CPRI Outdoor Patch Cord

MPC/MP=Multicore Bundle Distribution Patch Cord/Pigtail

OWP=Outdoor Waterproof Pigtail

IP=Indoor Pigtail

0=250um 005=0.5m 01=Simplex 1=Single mode PV=PVC 0=None 0=None 1=UPC 0=None
2=2.0mm 010=1.0m 02=Duplex LS=LSZH FC=FC FC=FC 2=APC 1=Kevlar+Armored tube
3=3.0mm 015=1.5m 04=Quad 2=Multimode OP=OFNP SC=SC SC=SC 3=PC
9=0.9mm
Transparent
020=2.0m 06=6Core OR=OFNR LC=LC LC=LC 2=Braid+Armored tube
030=3.0m 08=8Core PE=PE ST=ST ST=ST
8=0.9mm
Color
…… 12=12Core TP=TPU MU=MU MU=MU 3=Kevlar+Braid+Armored tube
300=30m 24=24Core E2=E2000 E2=E2000
48=48Core MT=MTP MT=MTP 4=0.45mm steel wire
72=72Core MP=MPT MP=MPT
…… S=Specify S=Specify 5=1.0mm steel wire
S=Specify
6=0.45mm FRP
Module x xx x x x x x x
YD- Fiber Type Fiber Length Fiber cores Fiber model Connector Fiber Stub Jacket Cable construction
OWP=Outdoor Waterproof Pigtail
IP=Indoor Pigtail
0=250um 05=0.5m 1=Simplex 1=Single mode 0=None 1=UPC 1=PE 1=Simplex
2=2.0mm 10=1.0m 2=Duplex 2=Multimode 1=FC 2=APC 2=other contracted material 2=multicore colorful
3=3.0mm 15=1.5m 3=Multicore 2=SC 3=PC
9=0.9mm
Transparent
20=2.0m 3=LC 3=multicore bundle
30=3.0m 4=ST
8=0.9mm
Color
5=MU 4=multicore distribution
6=E2000
S=Specify
