Rossette Distribution Box

Model NO.:Rossette Distribution Box
Cable Type:0.9mm Tight Buffered Fiber
Fiber Color: Natural
Tight Buffer Material: Nylon
Operation Temperature:-20℃~+70℃
Transport Package: Standard Carton
Specification:93*86*29 Box material ABS
Trademark:Fibconet
Origin:Ningbo
HS Code:8536700000
Production Capacity:800000 Pieces/Year

Additional information

Product Details

Product Description

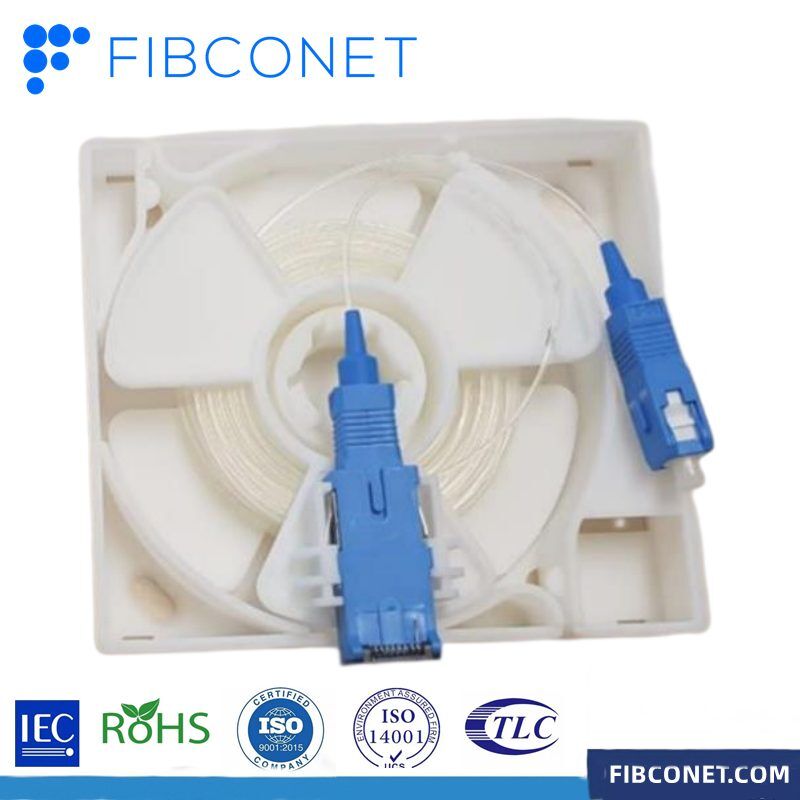

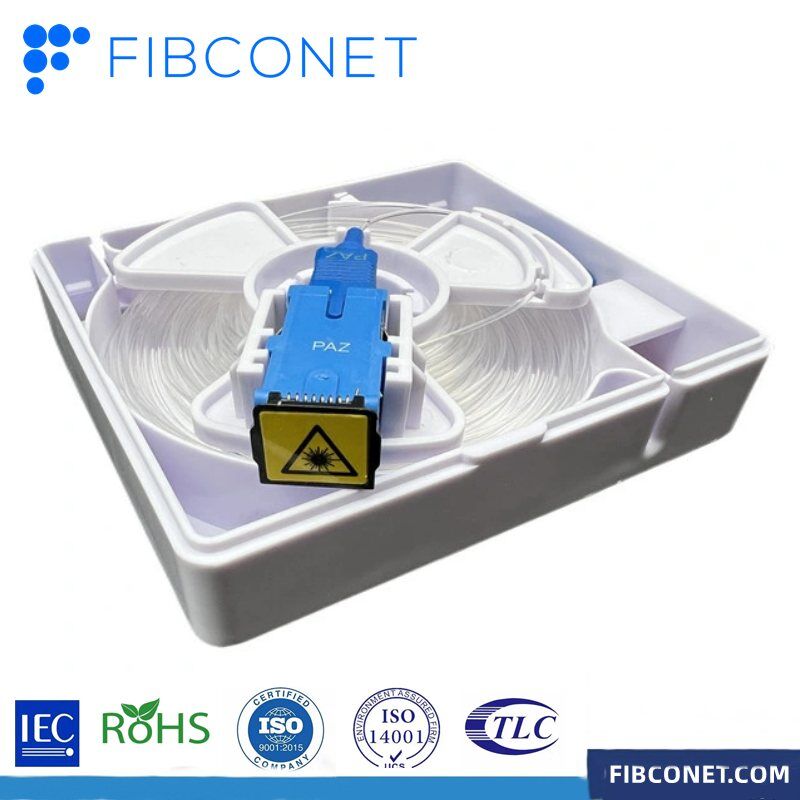

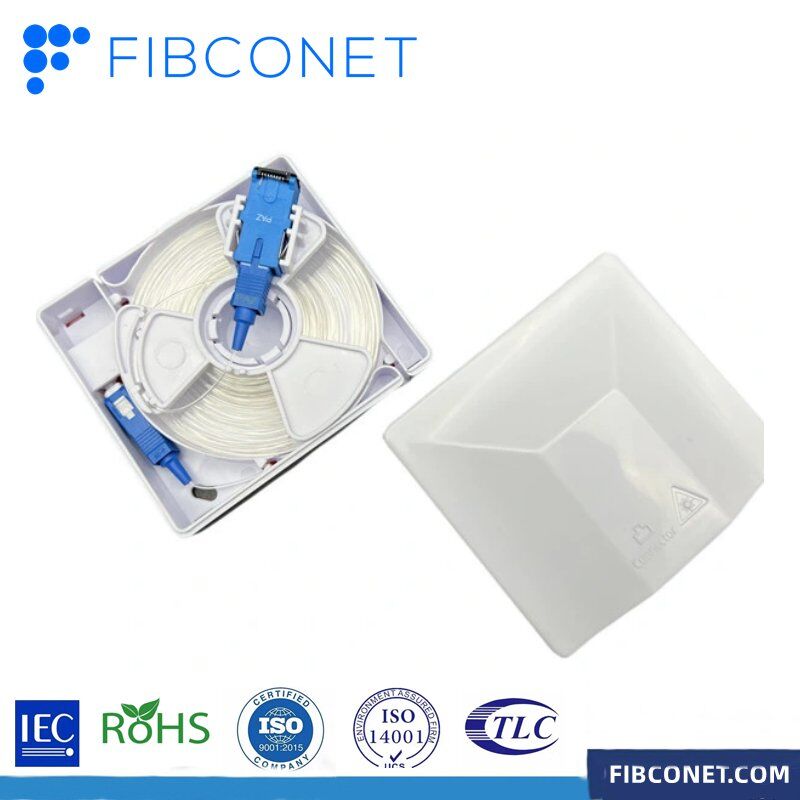

The fiber optic rosette indoor wall outlet box is used for indoor cable distribution. The main purpose is to connect outdoor fiber optic cable and indoor optical router in the middle, the box is equipped with fixed length fiber optic cable, the user can turn the fiber storage wheel to adjust the length of the cable according to the actual needs. Invisible fiber optic cable with standard SC connectors on the end of the 2 pieces, with an external diameter of 0.9mm, the exterior is made of high-strength transparent nylon material. There is a high strength and stealth effect, the back of the box with 3M adhesive double-sided adhesive, allows for quick wall mounting, for unsuitable paste the wall, you can also use expansion screws to install. In addition, the fixing of the optical cable, equipped with several transparent stickable mounting brackets, allows the user to connect the outdoor optical cable to the optical router simply and quickly as required, the installation does not require other heat sealing equipment, simple installation on the external wall, improving the aesthetics of the indoor wall. It’s the ideal product for FTTH.

Features
Small size, lightweight, use conveniently
ABS material, fireproof and dustproof
Radian appearance makes it slinky
Suitable for various modules and multimedia interfaces
Embedded chart and logo position make it easy to identity
Support MM or SM fiber connection
2 ports for SC simplex, LC duplex adapters
Specification
1, External dimensions. 93*86*29 Box material ABS.
FTTH Telecom Sc LC Wall Mounting Indoor Rossette Distribution Box
2, Length of invisible fibre optic cable stored inside
The cable storage box has 15M, 20M, 30M, 40M, the maximum length of fiber storage for 40M.
3, The invisible fibre optic cable is available in two sizes, G657A2 and G657B3.

Item Technology parameter
Cable type 0.9mm Tight buffered fiber
Fiber type 9/125 (G.657A2)
Fiber color Natural
Tight buffer color Natural
Tight buffer material Nylon
Tight buffer diameter mm 0.9±0.05
Cable weight Kg/km Approx. 0.7
Min. bending radius mm 15 (Static)
30 (Dynamic)
Attenuation dB/km <= 0.4 at 1310nm, <= 0.3 at 1550nm
Operation temperature ºC -20~+70

Structure and Dimensions
FTTH Telecom Sc LC Wall Mounting Indoor Rossette Distribution BoxFTTH Telecom Sc LC Wall Mounting Indoor Rossette Distribution BoxFTTH Telecom Sc LC Wall Mounting Indoor Rossette Distribution BoxConstruction and Installation
FTTH Telecom Sc LC Wall Mounting Indoor Rossette Distribution Box

  1. Rosette box is equipped with a clip holder to help install cables on the wall.
  2. must be installed by inserting it into the clip holder so that the cable position in the clip holder is neatly mounted.
  3. The shape of the clip holder is a straight clip that is used for all cable route models (straight route, turn route and inner / outer corner route).
  4. Clip holder can be equipped with a cover (cover) clip that is installed properly and not easily separated.
  5. The clip holder has a strong 3M double-sided adhesive tape.
  6.  The diameter of the cable hole in the clip holder is a maximum of 1 mm making it suitable for the box (cable diameter 0.9 mm).

Installation:
1, Double-sided adhesive installation: the reverse side of the box comes with 3M double-sided adhesive, which can be peeled off the protective layer and directly wall-adhered.
2, Installation of expansion screws
FTTH Telecom Sc LC Wall Mounting Indoor Rossette Distribution Box

The box comes with wall mounting brackets so that the user can peel off the double-sided tape for wiring as required.
FTTH Telecom Sc LC Wall Mounting Indoor Rossette Distribution Box
