FIBCONET na-emepụta fiber optic njikọ na nkwụnye na-ekpuchi usoro zuru oke nke ejiri na ịnweta FTTH, data-centre cabinets, ụlọ ọrụ etiti telecom na mbugharị n'èzí - site na ọkọlọtọ SC / LC / FC / ST / MPO / MTRJ / E2000 ka IP67 / IP68 enweghị mmiri n'èzí gosiri njikọ na ubi-mgbakọ (ngwa ngwa) njikọ maka nkwụsị na saịtị.
Ọ bụla njikọ na nkwụnye ụgbọ mmiri mgbe 100% nyocha ụlọ ọrụ - interferometer 3D njedebe maka MPO, ntinye ọnwụ na nleta ọnwụ n'ụdị eriri niile, na mating anwụ ngwa ngwa nkwenye megide IEC 61754 na Telcordia GR-326-CORE (Klas R) usoro. Ndị na-emepụta ihe bụ Sanhuan (Sumitomo na arịrịọ), na njikọ njikọ na-abịa na ọkọlọtọ telecom ọkwa site n'èzí PEI waterproof / Ọnụ ego nke PDLC.

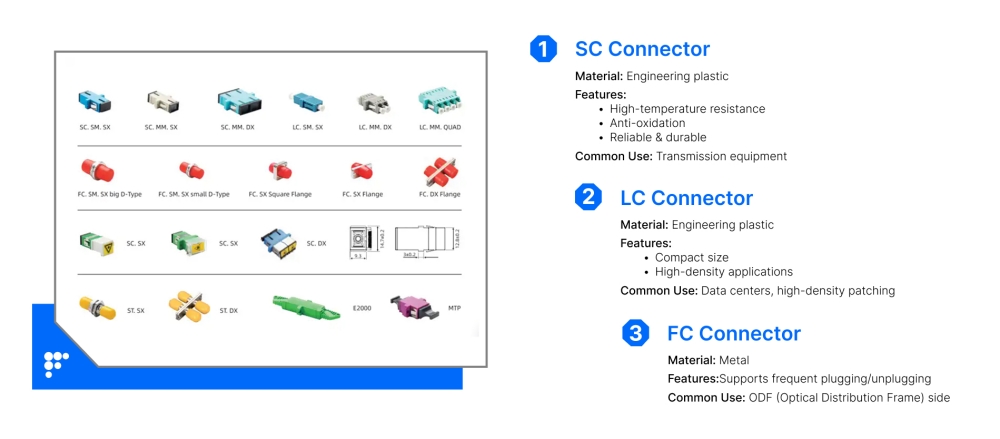

Ihe nkwụnye ọkụ (a na-akpọkwa coupler ma ọ bụ mating sleeve) bụ pasive akụrụngwa na na-ejikọta njikọ abụọ ihu na ihu n'ime ODF panel, patch panel, efere mgbidi ma ọ bụ igbe nkwụsị. Ọ na-ejikọta ferrules abụọ ahụ n'ime nnabata nnabata siri ike ka ọkụ na-agafe n'obere nkwụsị na nhụsianya kacha nta..
| Usoro njikọ | Ihe aka uwe | Mfu ntinye ntinye a na-ahụkarị | Nlaghachi azụ |
|---|---|---|---|
| SC | Ceramic (zirconia) | ≤ 0.2 dB | UPC ≥ 50 dB; APC ≥ 55 dB |
| LC | Ceramic (zirconia) | ≤ 0.2 dB | UPC ≥ 50 dB; APC ≥ 55 dB |
| FC | Ceramic (zirconia) | ≤ 0.2 dB | UPC ≥ 50 dB; APC ≥ 55 dB |
| ST | Ceramic (zirconia) | ≤ 0.2 dB | UPC ≥ 50 dB |
| MPO / MTP | Polymer akpụzi nkenke nwere ntinye pin | ≤ 0.35 dB nkezi (obere ọnwụ) | ≥ 55 dB (APC) |
| E2000, MTRJ, MU | Ceramic | ≤ 0.2 dB | UPC ≥ 50 dB; APC ≥ 55 dB |
Dị na mfe, duplex na quad nhazi, ya na flanges na-arị elu maka drawer ODF ọkọlọtọ, efere mgbidi, patch panel na omenala panel cutouts. Koodu agba na-esote nkwekọrịta ụlọ ọrụ - acha anụnụ anụnụ maka UPC, green maka APC, aqua maka OM3/OM4, lime green maka OM5, beige maka OM1/OM2 - yabụ onye ọrụ nka ọ bụla nwere ike ịchọpụta usoro ahụ na ilele.
Ahịrị njikọ anyị na-ekewa n'ime ezinụlọ atọ dabere ka esi akwụsị eriri ahụ:
| Ụdị | Usoro nkwụsị | Kachasị mma maka |
|---|---|---|
| Njikọ ụlọ ọrụ kwụsịrị (na-egbu maramara na eriri eriri anyị) |
Ngwakọta-splice, epoxy + Polish na factory | Ụdọ mkpọchi, pigtails, ODF akpachapụrụ cabling - arụmọrụ ngwa anya kachasị elu na nke na-agbanwe agbanwe |
| Ubi-Mgbakọ (Ngwa ngwa) Njikọ | Mechanical splice na saịtị, ọ dịghị fusion splicer chọrọ | Mbugharị ubi FTTH, nkwụsị-USB, Ndozi ihe mberede - lee ngalaba njikọ ngwa ngwa raara onwe anyị nye maka ahịrị zuru ezu |
| Waterproof / Njikọ dị n'èzí (PDLC, PII, IP67 / IP68) |
Mgbakọ USB akwụsịla tupu ya ejiri ụlọ mechiri emechi | Isi ọdụ RRU, akụrụngwa n'èzí, ndakọrịta telecom (HW / ZTE / Ericsson), njikọ nke gburugburu ebe obibi siri ike |
Maka mgbakọ USB akwụsịlarịrị, A na-ejikọta njikọ na eriri FIBCONET n'ime ụlọ - na-enye gị mmalite ferrule., mkpesa ntinye ọnwụ ọnwụ kwa isi, na arụmọrụ ogbe na-agbanwe agbanwe. Maka njikọta mpaghara-mgbakọ, anyị raara onwe anyị nye Otu njikọ ngwa ngwa na-ekpuchi eri nke onwe-mkpọchi, ọtụ-ọnụ, ụdị drawer, CCTC otu-seramiiki, seramiiki mgbanaka okpukpu atọ na ụdị ndị ọzọ a na-etinye n'ubi ejiri rụọ ọrụ FTTH ikpeazụ-mile.
Ha atọ na-akọwa otú e si eme ka ihu njedebe ferrule na-egbu maramara, na nke ọ bụla na-enye a dị iche iche nloghachi uru uru.
| Ụdị Polish | Nlaghachi azụ | Ebe a ga-eji |
|---|---|---|
| PC (Kpọtụrụ anụ ahụ) | ≥ 40 dB | Telecom nke ochie, ojiji izugbe dị ọnụ ala - nke UPC nọchiri ya |
| UPC (Ultra anụ ahụ) | ≥ 50 dB | Ebe data, Network network, ọtụtụ FTTH ime ụlọ - ndabara na-emekarị |
| APC (Nkụnta anya nke anụ ahụ, 8° polishing) | ≥ 55 dB | MON / FTTH n'èzí osisi, CATV RF-over-glass, DWDM - ebe ọ bụla mweghachi nloghachi dị oke mkpa iji gbochie ntụgharị uche mgbaama |
Ọchịchị isi: jiri APC (njikọ green) maka ihe ọ bụla na-ebu akara ngosi RF ma ọ bụ dobe PON; UPC (njikọ na-acha anụnụ anụnụ) maka ọkọlọtọ data okporo ụzọ. Ejikọtala UPC na APC - nkwekọ n'akuku Polish ga-ebute nnukwu mfu ma nwee ike imebi ihe ndị ahụ..
| Oke | Uru |
|---|---|
| nnabata / ụkpụrụ ule | IEC 61754, Telcordia GR-326-CORE Klas R, IEC 61300 Klas U |
| Mfu ntinye (ụdị) | ≤ 0.2 dB ọkọlọtọ njikọ; ≤ 0.35 dB MPO dị obere; gbadata 0.15 dB nwere ferrules ebubata |
| Weghachite mfu | PC ≥ 40 dB, UPC ≥ 50 dB, APC ≥ 55 dB |
| Mating anwụ ngwa ngwa | SC / LC / FC ≥ 1,000 okirikiri; MPO ≥ 500 okirikiri |
| Ọnọdụ okpomọkụ na-arụ ọrụ | -40 ruo +85 Celsius C maka mpụga / waterproof; -20 ruo +60 Celsius C maka ọkọlọtọ ime ụlọ |
| Ogo mgbochi mmiri (n'èzí njikọ) | IP67 / IP68 |
| Ihe ndị na-emepụta ihe | Zirconia seramiiki (Sanhuan ndabara; Sumitomo na arịrịọ); polymer akpụzi nkenke nwere ntinye ntụtụ (MPO) |
| Ihe eji eme ụlọ | Plastic ọkọlọtọ (ime ụlọ); PEI ma ọ bụ PDLC injinịa plastik (n'èzí / waterproof) |
Ọkọlọtọ SC / LC / FC / Ihe nkwụnye ST na njikọ njikọ na-ebubata ngwaahịa na-enweghị MOQ siri ike - anabatara na iwu ikpe. Njikọ MPO na-amalitekarị na 100 nkeji. Igwe anaghị egbochi mmiri na njikọ telecom dakọtara (Ọ bụ njikọ dị n'èzí 3-in-1 zuru ụwa ọnụ nke Fibconet mepụtara / ZTE / Ericsson) na-ehota kwa oru ngo dabere na ụlọ spec.

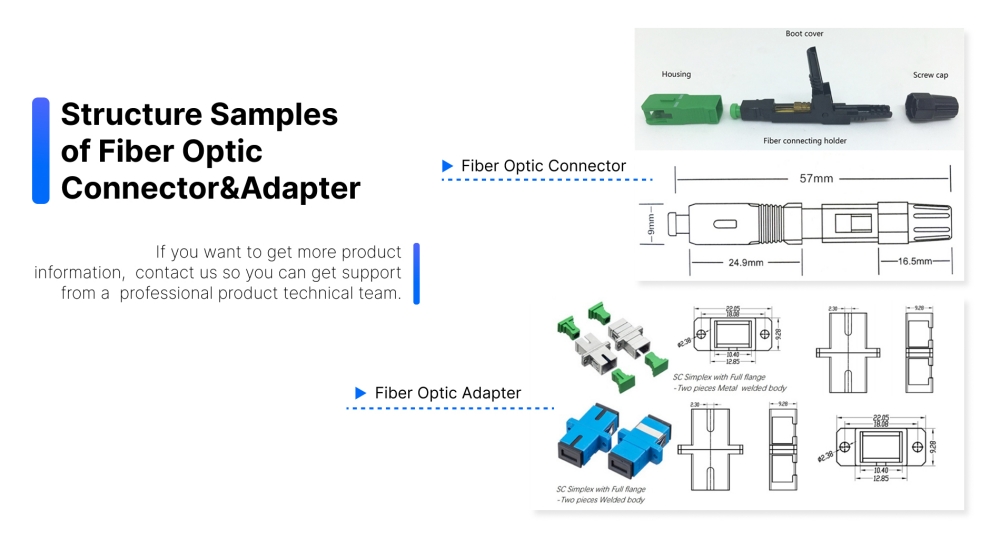

A njikọ bụ nkwụnye na njedebe nke eriri eriri - ọ na-ejide ferrule ma kwụsị eriri ahụ. A nkwụnye (a na-akpọkwa coupler ma ọ bụ mating sleeve) bụ nkwụsị nke na-ejikọta njikọ abụọ ihu na ihu, aligning ha ferrules maka obere ọnwụ mgbama nyefe. ODF ọ bụla, patch panel ma ọ bụ efere mgbidi na-eji ihe nkwụnye na-enweta njikọ na-abata site na eriri patch ma ọ bụ pigtails.
Jiri APC (njikọ green, 8° Polish n'akuku) maka PON ọ bụla / FTTH n'èzí njikọ osisi, CATV RF-over-glass, na DWDM - ebe ọ bụla ọkụ na-egosipụta nwere ike igbochi mgbama. Jiri UPC (njikọ na-acha anụnụ anụnụ) maka ọkọlọtọ data okporo ụzọ na data center, netwọk ụlọ ọrụ na ọtụtụ eriri ime ụlọ. Never mate UPC to APC — the angle mismatch causes major loss and can damage the ferrules.
Ee. Anyị na-arụpụta IP67 and IP68 waterproof connectors in PDLC and PEI housings, dakọtara na Huawei, ZTE, Ericsson and other major telecom equipment vendors. Please specify the target equipment model at RFQ stage so we can confirm the correct housing and interface spec.
Ee. Every shipment includes 100% factory test results (ihu ngwụcha, ntinye ọnwụ, Laghachi). Akuko ule eletrọnịkị na FLUKE ma ọ bụ EXFO are available on request — useful for project acceptance and customer audit.
Ee, we manufacture a full line of field-assembly connectors — threaded self-locking, ọtụ-ọnụ, ụdị drawer, CCTC otu-seramiiki, three-ring double-ceramic and more. See our dedicated Otu njikọ ngwa ngwa for the full range and specifications.
